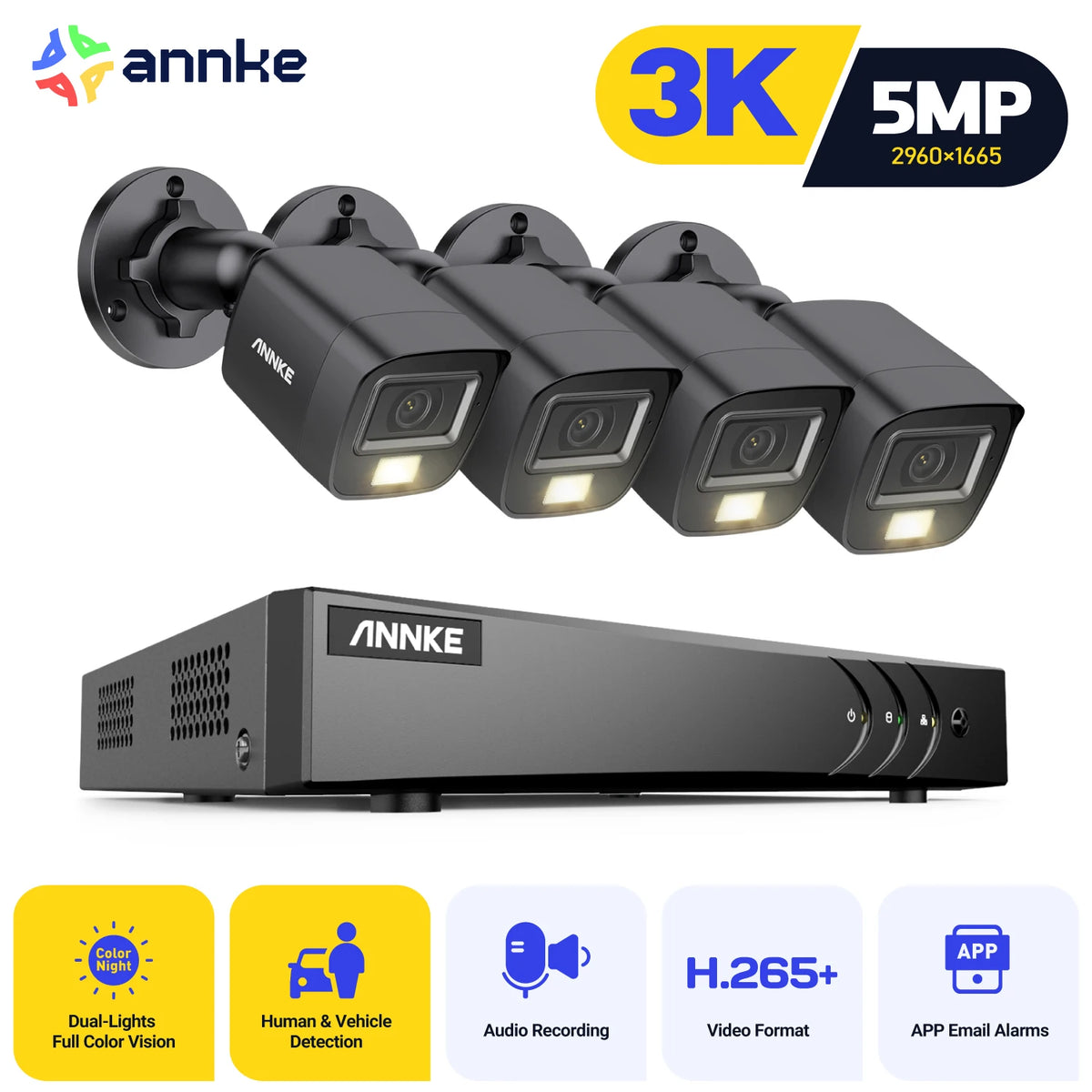

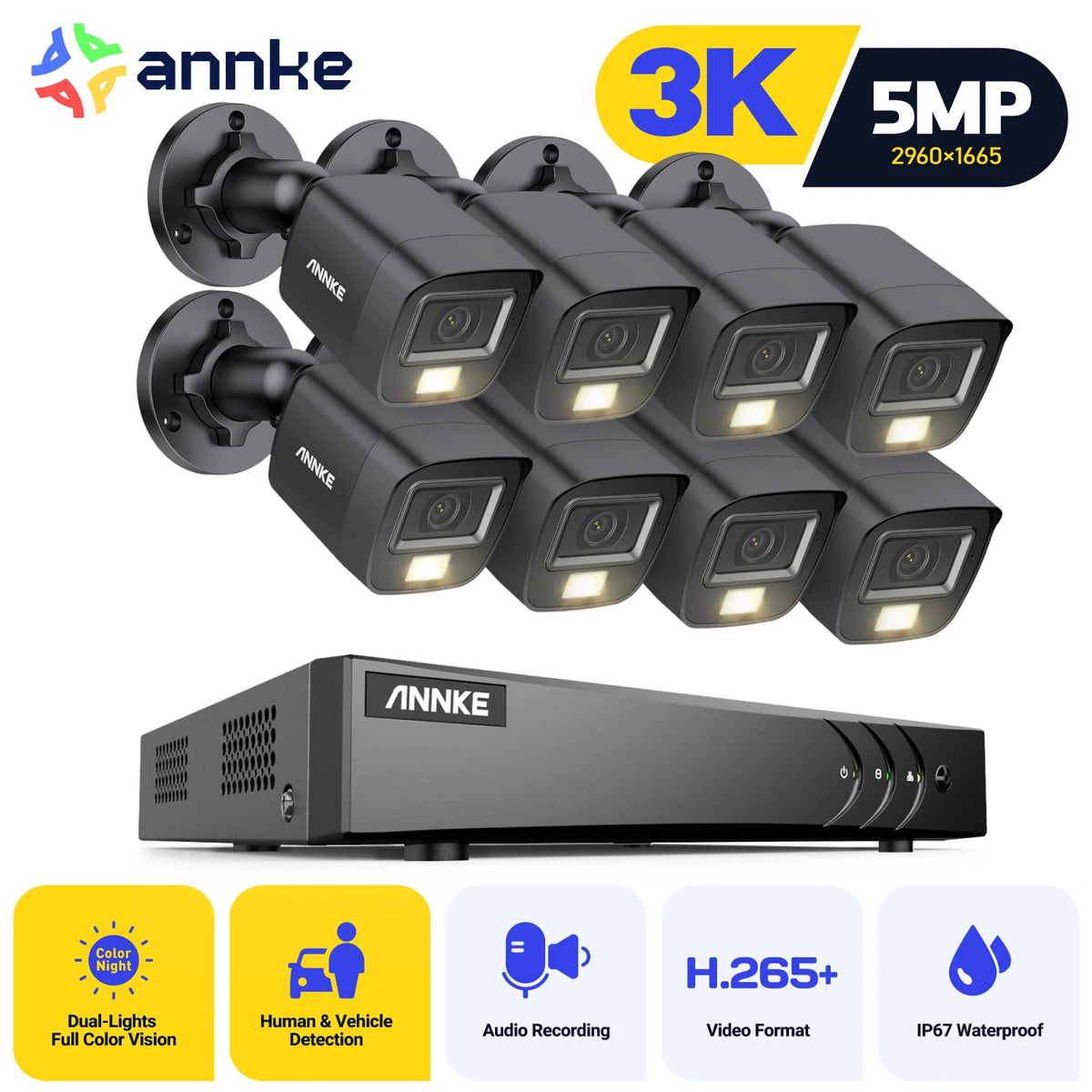

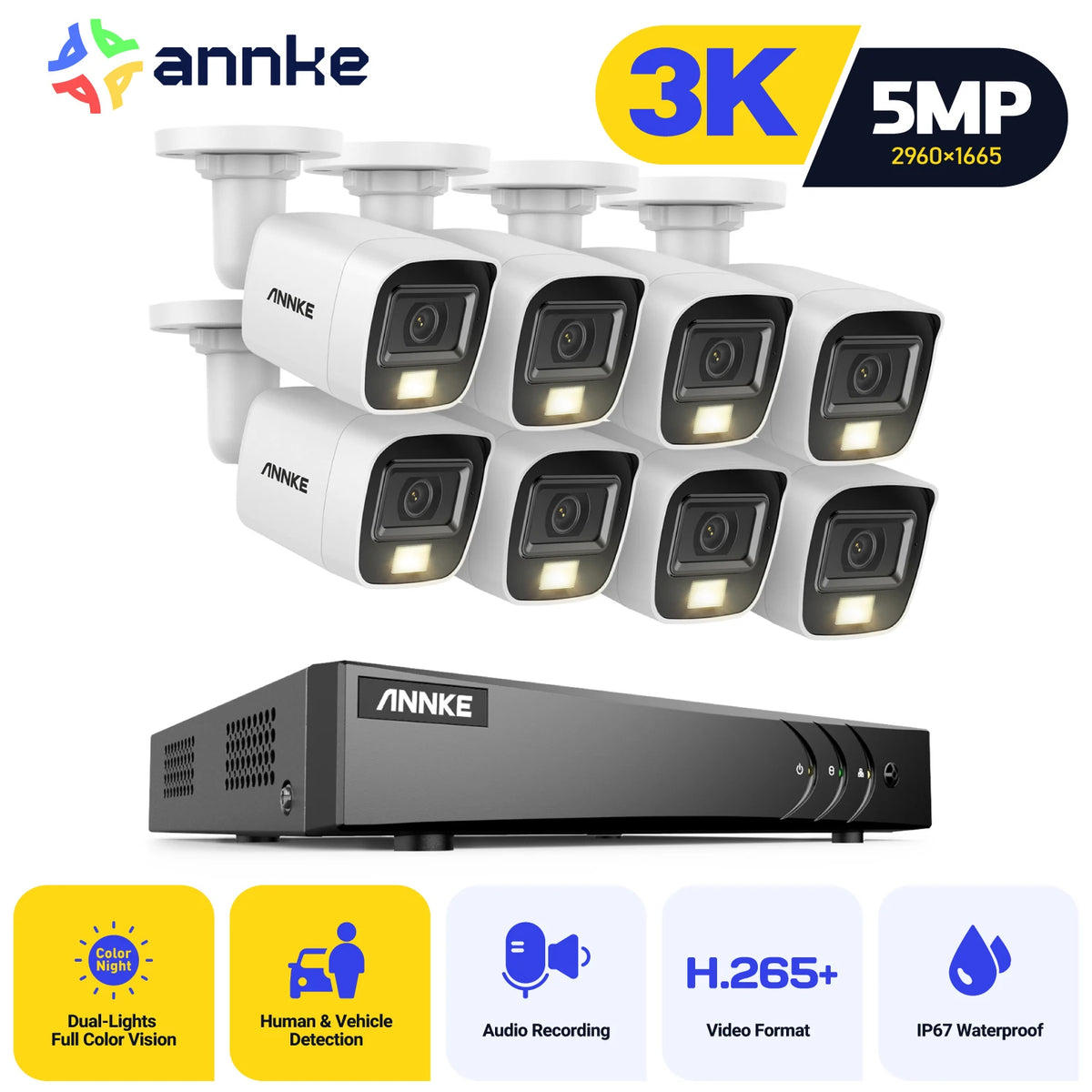

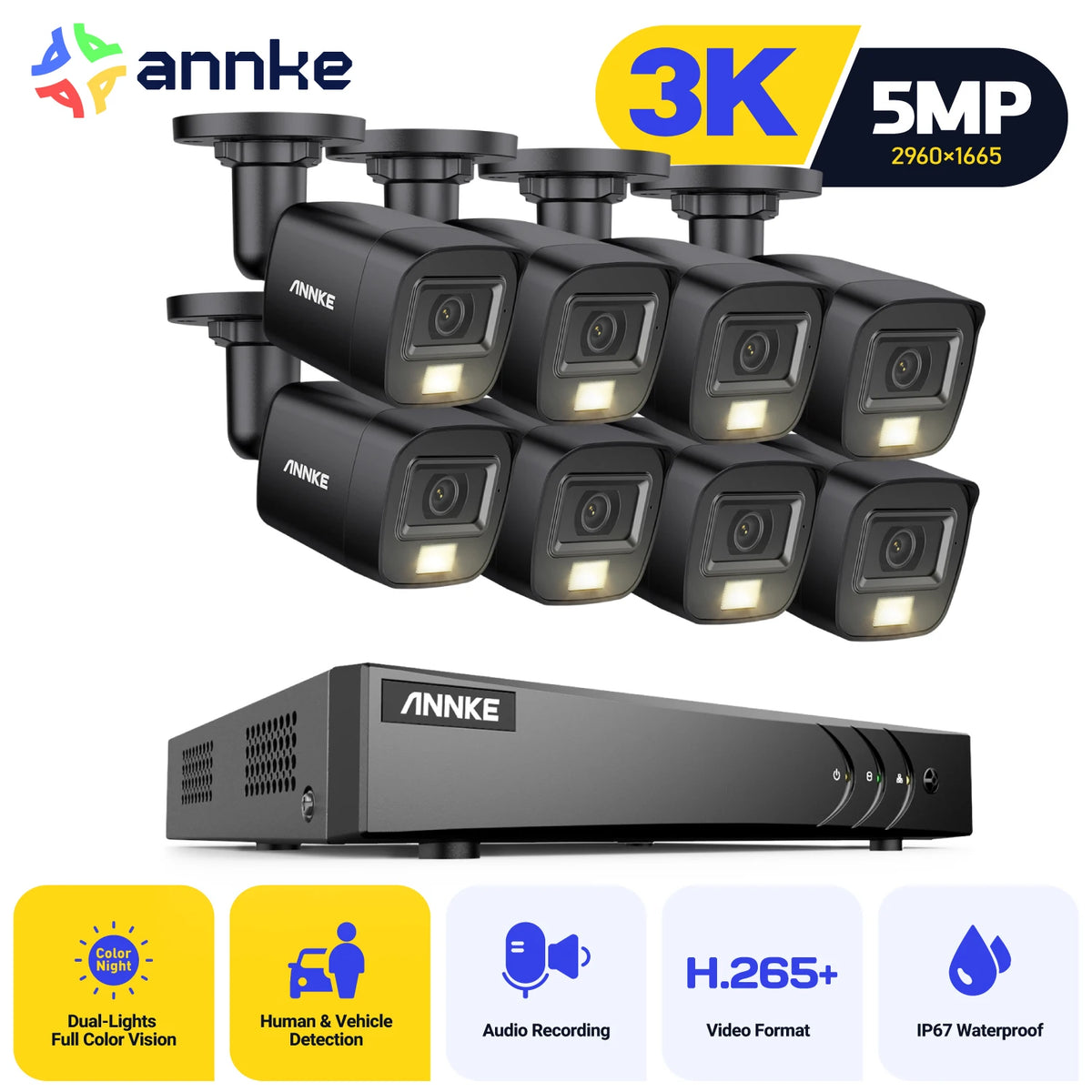

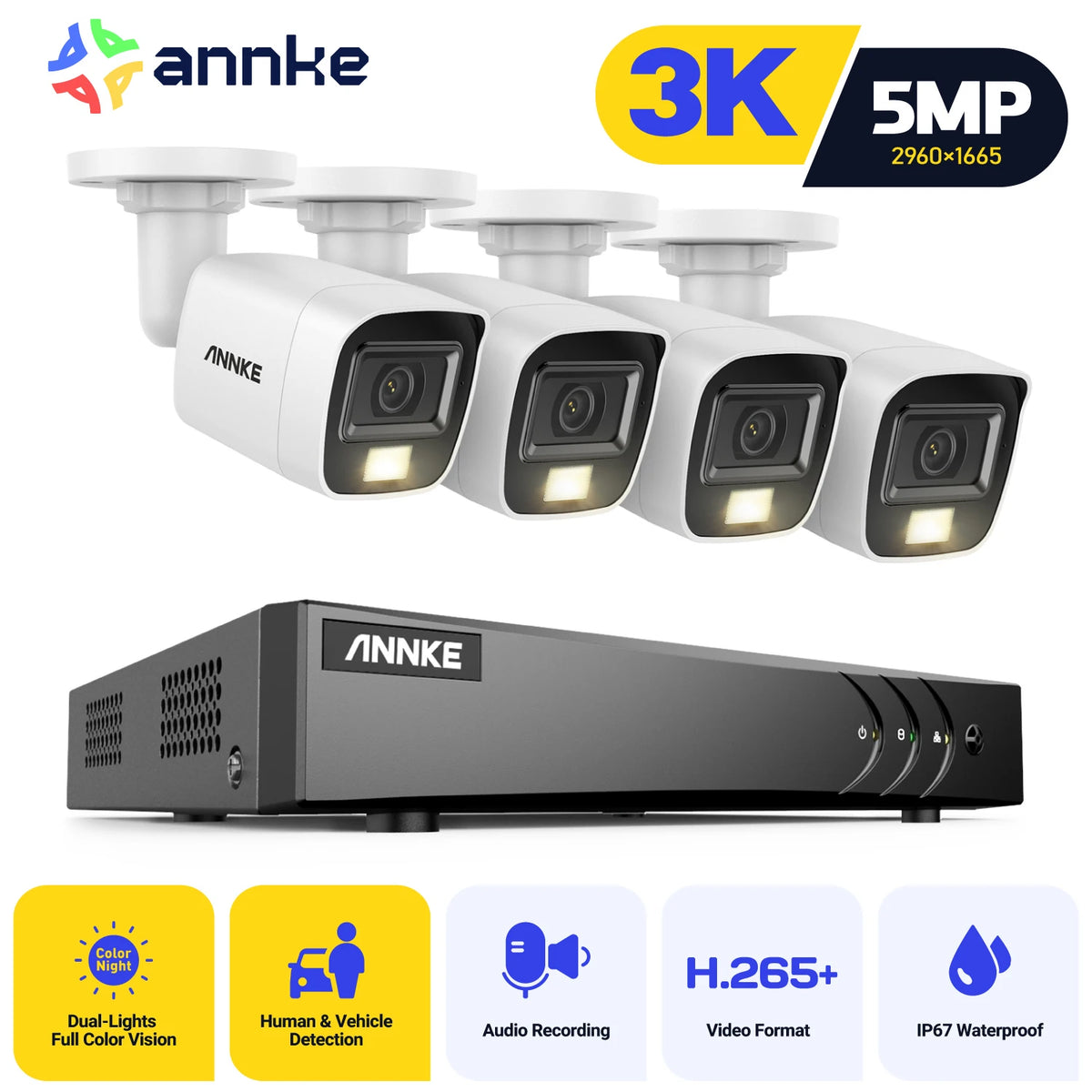

DVR Key Features
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H.265 Pro+ Video Compression

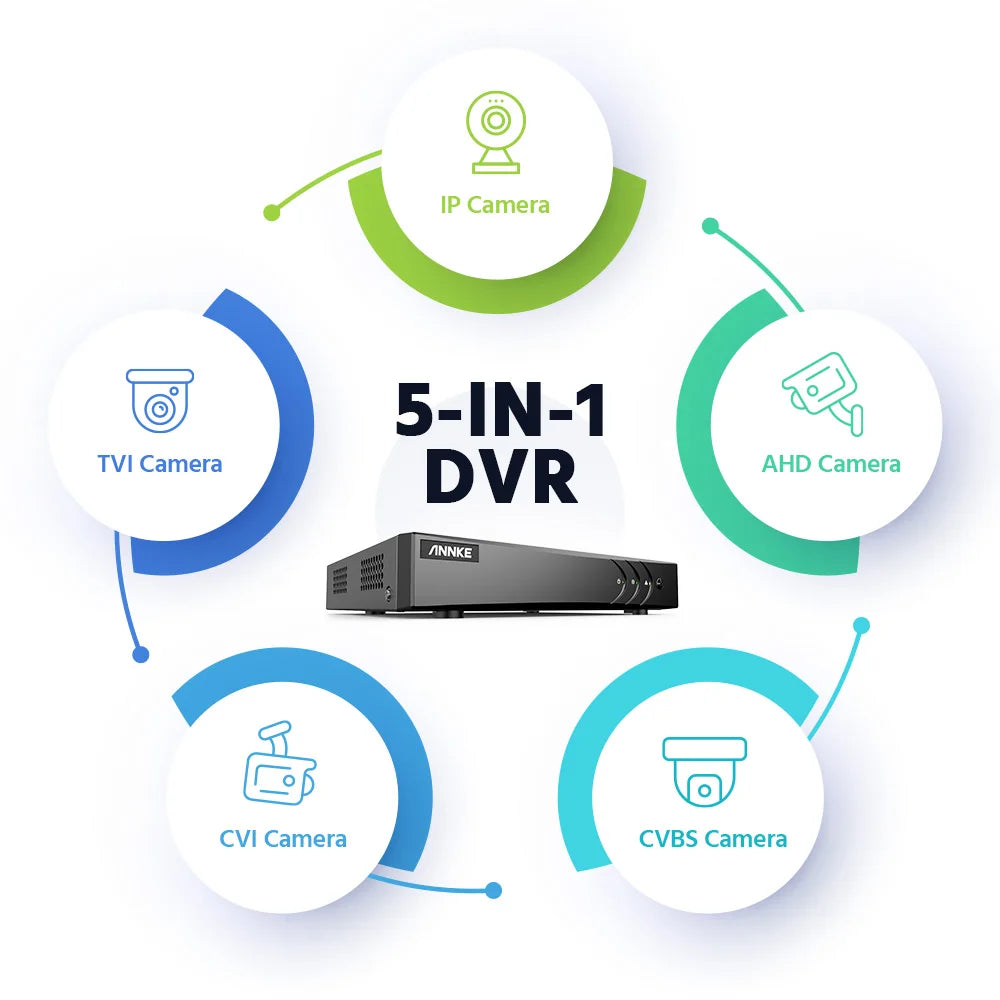

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhone、iPad、Android mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable
Camera Key features
High quality imaging with 3K, 2960 × 1665 resolution
2.8 mm fixed focal lens@F1.2
High quality audio with audio over coaxial cable, built-in mic
Up to 25 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP67)
Enhanced Clarity with 3K Super HD
Our camera combines DWDR, AGC, BLC, and HLC technologies with 3K Super HD resolution (2960×1665@20fps) and a 2.8mm f/1.2 lens for stunning 129° FoV. Enjoy sharper, more accurate images day or night, perfectly suited for mainstream displays.

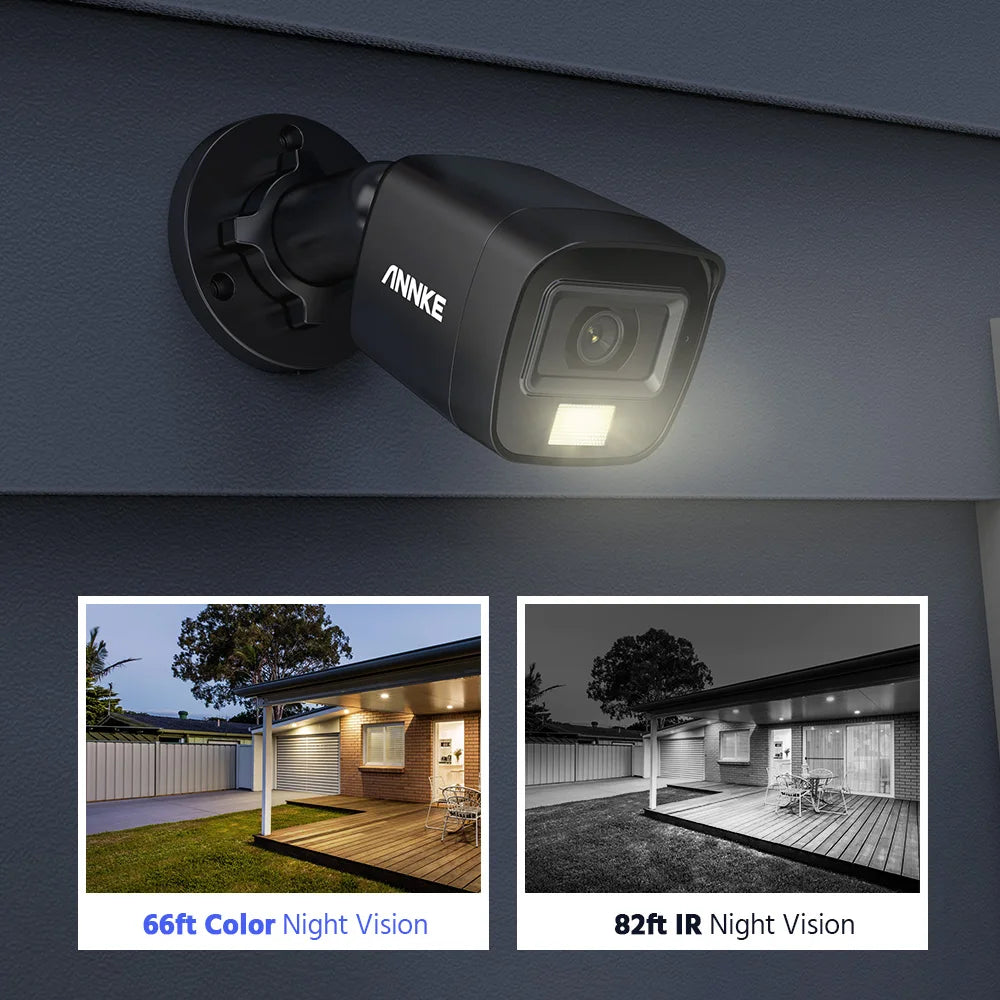

Capture Clear Night Detail by Smart Dual Light
Default smart dual light mode, the camera can clearly find the target at night by infrared light, If there is a moving target, the white light will start, infrared off, so as to obtain a clear color image. In addition, you can also choose full infrared or full white light mode. Infrared fill light is up to 25 m, up to 20 m white light distance for bright night imaging.
Audio Recording with Built-in Mic
The camera has a built-in microphone, allowing you to hear and record crisp, clear audio by coaxial cable, and the audio can be turned off in the menu.
DVR |
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265 Pro+ |
Video Input |
8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) |
Video Output |
HDMI and VGA Up to 1080P |
Audio Input |
1-ch RCA,8-ch via coaxial cable |
Audio Output |
1-ch RCA |
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 5MP(20FPS)4MP, 1080p, 720P;
Support CVI Input: 5MP(20FPS),4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input：6MP/5MP/4MP/3MP/1080P/720P |
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
IPC Playback Resolution |
Up to 6MP |
Max Playback Channel |
8-ch |
Network Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
Total Bandwidth |
96Mbps |
Remote Connection |
64 |
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity |
External Interface |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
USB |
USB2.0x2 |
General |
Operating Power |
DC12V,≤ 12W (without HDD) |
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
Weight (without hard disk) |
≤ 1 kg (2.2 lb)(without HDD) |
Image sensor |
3K CMOS Image sensor |
Video Resolution |
2960 (H) × 1665 (V)(16:9) |
Signal System |
PAL/NTSC |
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC |
Lens |
2.8mm |
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
Angle of View |
Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
Supplement Light type |
1 white Light & 2 EXIR |
Supplement Light Range |
IR : Up to 25 m, white Light : Up to 20 m |
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
Wide Dynamic Range |
Digital WDR |
Audio |
Built-in mic |
IR Cut Filter |
Yes |
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
Housing |
Plastic |
Color |
Black |
Operating Power |
12 VDC ± 25% |
Consumption |
Max. 2.9 W |
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |
Weatherproof Rating |
IP67 |
Dimension (L x W x H) |
138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3") |
Weight |
Approx. 155 g (0.34 lb.) |
